idler sprockets

idler sprockets

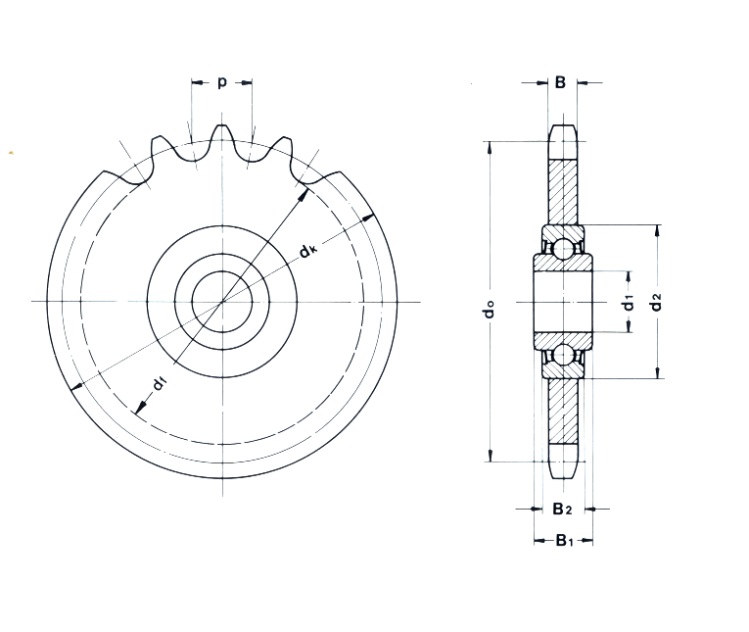

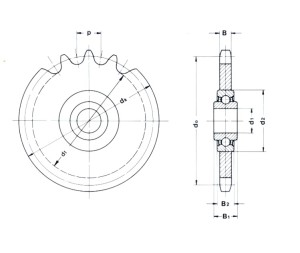

description pitch No. of teeth pitch circle tip circle tooth width inner outer outer ring inner ring weight
ISO / Standard   Ø Ø Ø Ø width width approx
  p z do dk B d1 d2 B1 B2
  mm   mm mm mm mm mm mm mm kg/pcs.
KSR 06B-1-21 9,525 21 63,9 68,0 5,3 16 40 18,3 12 0,15
KSR 08B-1-18 12,7 18 73,1 78,0 7,2 16 40 18,3 12 0,20
KSR 10B-1-17 15,875 17 86,4 93,0 9,1 16 40 18,3 12 0,30
KSR 12B-1-15 19,05 15 91,6 100,0 11,1 16 40 18,3 12 0,40
KSR 16B-1-12 25,4 12 98,1 109,0 16,2 20 47 17,7 14 0,65
KSR 20B-1-13 31,75 13 132,7 148,0 18,5 25 52 21 15 0,73



idler sprockets usually will be delivered with ballbearing for immediate assembling.

The ballbearings are both-sides sealed, equipped with longlasting lubrication and therefore

they need less (or neither) maintenance.

  • ballbearing (type): Standard 203 KRRAH02
  • wide inner ring enables perfect assembling without any spacer rings
  • ball bearing and sprocket are hardly connected with press fit
  • sprockets made from steel, consistency 490 – 600 N/mm²
  • installed in the slack run/strand of the chain drive, these schain-stretcher sprockets will solve in optimal way all streching-problems
