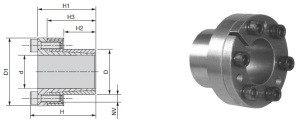

Locking assemblies series KLCC
- self-centering
- rapid maintenance and assembly
- medium to high torque
- self-locking
type | Performances | Surface pressure | |||||||
d | D | D1 | H3 | H1 | H | H2 | Mt (Nm) | Ta (KN) | |
KLCC008 | 8 | 15 | 32 | 21 | 24 | 28 | 12 | 30 | 7,19 |
KLCC009 | 9 | 16 | 32 | 23 | 27 | 31 | 14 | 32 | 7,19 |
KLCC010 | 10 | 16 | 32 | 23 | 27 | 31 | 14 | 40 | 9 |
KLCC011 | 11 | 18 | 34 | 23 | 27 | 31 | 14 | 50 | 9 |
KLCC012 | 12 | 18 | 34 | 23 | 27 | 31 | 14 | 55 | 9 |
KLCC014 | 14 | 23 | 39 | 23 | 27 | 31 | 14 | 64 | 9 |
KLCC015 | 15 | 24 | 45 | 29 | 36 | 42 | 14 | 99 | 13 |
KLCC016 | 16 | 24 | 45 | 29 | 36 | 42 | 16 | 105 | 13 |
KLCC018 | 18 | 26 | 47 | 31 | 38 | 44 | 16 | 158 | 18 |
KLCC019 | 19 | 27 | 48 | 31 | 38 | 44 | 18 | 167 | 18 |
KLCC020 | 20 | 28 | 49 | 31 | 38 | 44 | 18 | 176 | 21 |
KLCC022 | 22 | 32 | 54 | 38 | 45 | 51 | 18 | 232 | 21 |
KLCC024 | 24 | 34 | 56 | 38 | 45 | 51 | 25 | 253 | 21 |
KLCC025 | 25 | 34 | 56 | 38 | 45 | 51 | 25 | 263 | 21 |
KLCC028 | 28 | 39 | 61 | 38 | 45 | 51 | 25 | 368 | 31 |
KLCC030 | 30 | 41 | 63 | 38 | 45 | 51 | 25 | 474 | 31 |
KLCC032 | 32 | 43 | 65 | 43 | 50 | 56 | 30 | 505 | 31 |
KLCC035 | 35 | 47 | 69 | 43 | 50 | 56 | 30 | 737 | 42 |
KLCC038 | 38 | 50 | 72 | 43 | 50 | 56 | 30 | 800 | 42 |
KLCC040 | 40 | 53 | 75 | 45 | 52 | 58 | 32 | 947 | 53 |
KLCC042 | 42 | 55 | 77 | 45 | 52 | 58 | 32 | 994 | 78 |
KLCC045 | 45 | 59 | 85 | 56 | 64 | 72 | 40 | 1750 | 78 |
KLCC048 | 48 | 62 | 88 | 56 | 64 | 72 | 50 | 1867 | 78 |
KLCC050 | 50 | 65 | 92 | 66 | 74 | 82 | 50 | 2431 | 97 |
KLCC055 | 55 | 71 | 98 | 66 | 74 | 82 | 50 | 2674 | 97 |
KLCC060 | 60 | 77 | 104 | 66 | 74 | 82 | 50 | 2917 | 97 |
KLCC065 | 65 | 84 | 111 | 66 | 74 | 82 | 50 | 3160 | 97 |
KLCC070 | 70 | 90 | 122 | 80 | 91 | 101 | 60 | 4322 | 123 |
KLCC075 | 75 | 95 | 126 | 80 | 91 | 101 | 60 | 6171 | 197 |
KLCC080 | 80 | 100 | 131 | 85 | 96 | 106 | 65 | 7899 | 237 |
KLCC085 | 85 | 106 | 137 | 85 | 96 | 106 | 65 | 8393 | 237 |
KLCC090 | 90 | 112 | 143 | 85 | 96 | 106 | 65 | 10367 | 276 |
KLCC095 | 95 | 120 | 153 | 85 | 96 | 106 | 65 | 10943 | 276 |
KLCC100 | 100 | 125 | 162 | 89 | 102 | 114 | 65 | 14520 | 348 |
KLCC110 | 110 | 140 | 177 | 94 | 107 | 119 | 70 | 15972 | 348 |
KLCC120 | 120 | 155 | 195 | 114 | 127 | 139 | 90 | 23232 | 465 |
KLCC130 | 130 | 165 | 205 | 114 | 127 | 139 | 90 | 25168 | 465 |
KLCC140 | 140 | 175 | 215 | 114 | 127 | 139 | 90 | 27104 | 465 |
KLCC150 | 150 | 185 | 225 | 114 | 127 | 139 | 90 | 29041 | 465 |
