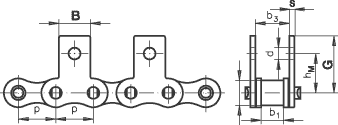

Roller chain 08B-1 with attachment M1(narrow design with one hole)

carrier plate fitted on one side
on every outer link (= 2 x p)

roller chain attachment m1.1



carrier plate fitted on one side
on every outer link (= 2 x p)

roller chain attachment M1.2



Chain-no. pitch inner width bore- middle pin width of attachment middle bore
Ø to to
middle bore top of attachment
p b1 d hM B G
min. H14 +/- 0,2 +/- 1,0 +/- 1,0
K06B-1-M1 9,525 5,72 3,5 9,52 8,00 12,84
K08B-1-M1 12,700 7,75 4,5 13,0 9,50 17,85
K10B-1-M1 15,875 9,65 5,5 16,5 14,30 21,86
K12B-1-M1 19,050 11,68 6,6 21,0 16,00 26,58
K16B-1-M1 25,400 17,02 6,6 23,0 19,10 31,80
K20B-1-M1 31,750 19,56 9,0 30,5 35,00 45,70
K24B-1-M1 38,100 25,40 11,0 36,0 38,00 60,00
K28B-1-M1 44,450 30,99 13,5 36,65 45,00 75,50
K32B-1-M1 50,800 30,99 13,5 47,70 50,00 77,00
