Roller chains with M2 attachment (wide design with two holes)

Carrier plate fitted on both sides
on every outer link (= 2 x p)

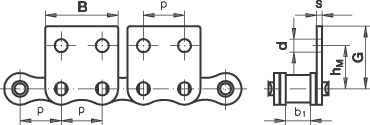

roller chain attachment M2.1



Carrier plate fitted on both sides
on every outer link (= 2 x p)

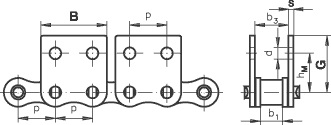

roller chain attachment m2.2



Chain-no. pitch inner width bore- middle pin attachment width middle pin
      Ø to   to
        middle bore   top of attachment
p b1 d hM B G
min. H14 +/- 0,2 +/- 1,0 +/- 1,0
K06B-1-M2 9,525 5,72 3,5 9,52 17,60 12,84
K08B-1-M2 12,700 7,75 4,5 13,0 24,00 17,85
K10B-1-M2 15,875 9,65 5,5 16,5 29,50 21,86
K12B-1-M2 19,050 11,68 6,6 21,0 34,80 26,58
K16B-1-M2 25,400 17,02 6,6 23,0 46,40 31,80
K20B-1-M2 31,750 19,56 9,0 30,5 57,75 45,70
K24B-1-M2 38,100 25,40 11,0 36,0 71,50 60,00
K28B-1-M2 44,450 30,99 13,5 36,65 81,45 75,50
K32B-1-M2 50,800 30,99 13,5 47,70 92,80 77,00
