Gall chains DIN 8150

Gall chain DIN 8150

Gall chains DIN 8150
    Bush- inner width
 Pin- Pin- Pin-
 Plate- Plate- No. of plates
 breaking- weight
  pitch dia. inner link
 dia. length length height thickness per link
 load
Gall chain DIN 8150

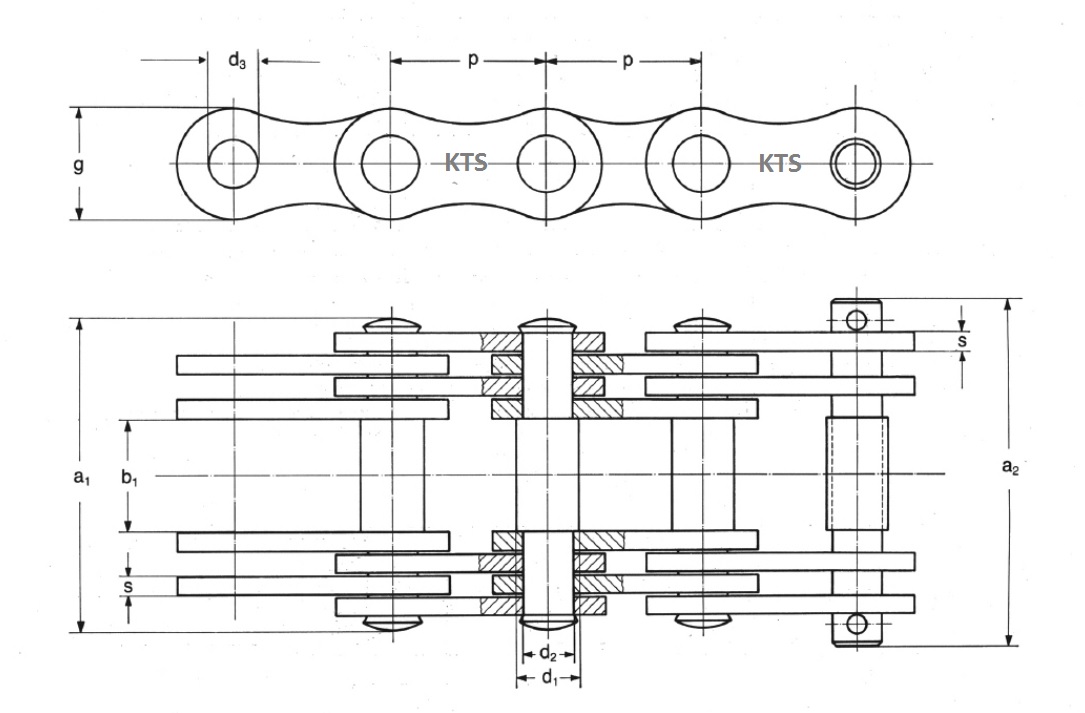

 p d1 b1 d2 a 1 a2 g s   FB q
no. mm mm mm mm mm mm mm mm   kN kg/m
    max. min. max. max. max. max. max.   min. approx
GK-15 15 5 12 4 22 26 12 2 2 5,0 0,7
GK-20 20 8 15 6 28 33 15 2 2 12,5 1,1
GK-25 25 10 18 8 36 42 18 3 2 25,0 1,8
GK-30 30 11 20 9 51 58 20 3 4 40,0 3,4
GK-35 35 12 22 10 53 61 26 3 4 60,0 4,5
GK-40 40 14 25 12 58 66 28 3 4 80,0 5,1
GK-45 45 17 30 14 63 70 35 3 4 100,0 6,4
GK-50 50 22 35 18 90 97 38 4,5 4 150,0 11,3
GK-55 55 24 40 21 108 115 40 6 4 200,0 15,5
GK-60 60 26 45 23 114 120 45 6 4 250,0 18,0
GK-70 70 32 50 28 148 157 55 6 6 375,0 33,5
GK-80 80 36 60 32 160 170 60 6 6 500,0 38,2
GK-90 90 40 70 36  189 199 70 7 6 750,0 53,0
GK-100 100 45 80 40  228 238 80 7 8 1.000,0 76,6
GK-110 110 50 90 45  240 250 90 7 8 1.250,0 90,0
GK-120 120 55 100 50  266 276 100 8 8 1.500,0 112,0
