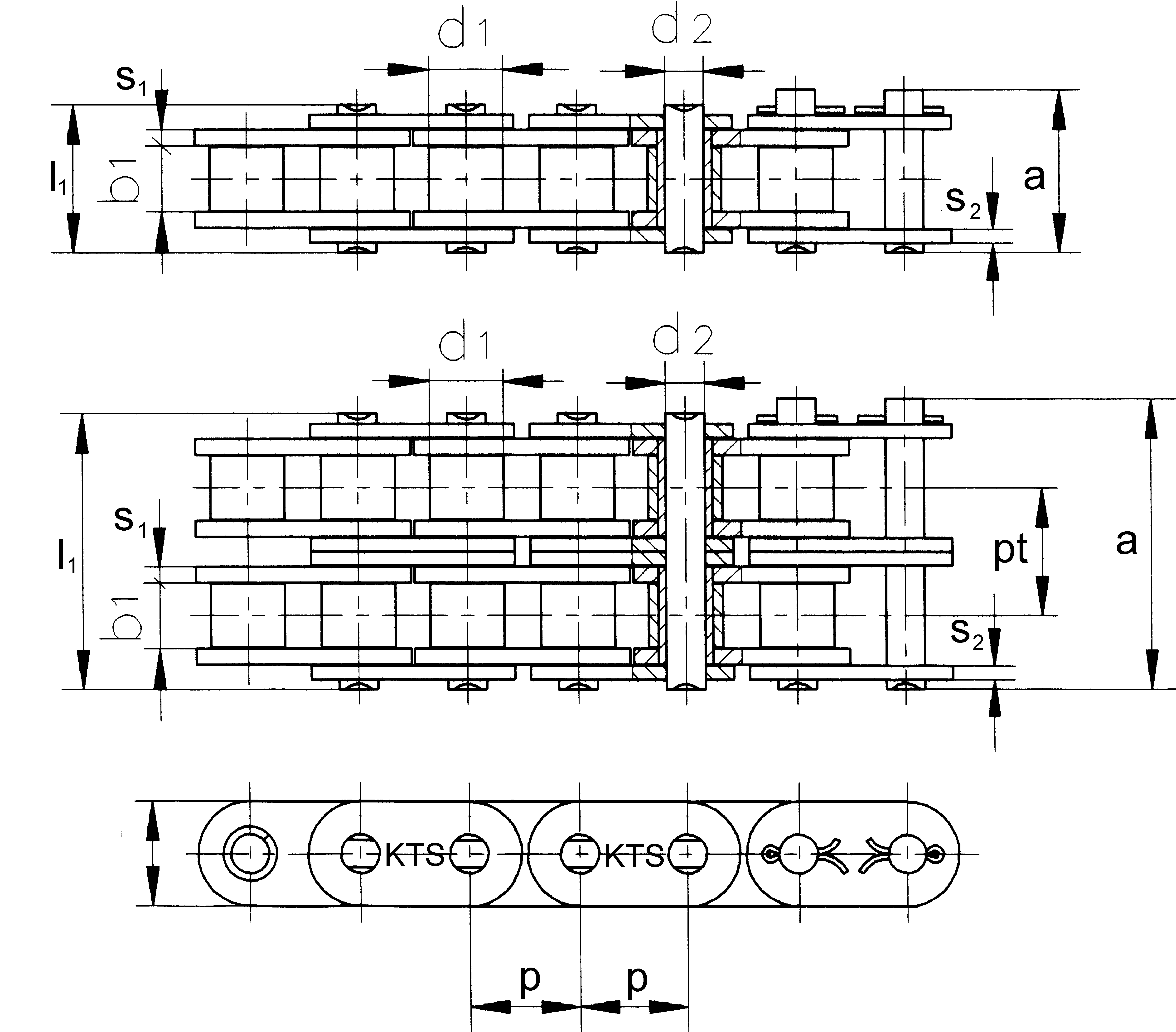

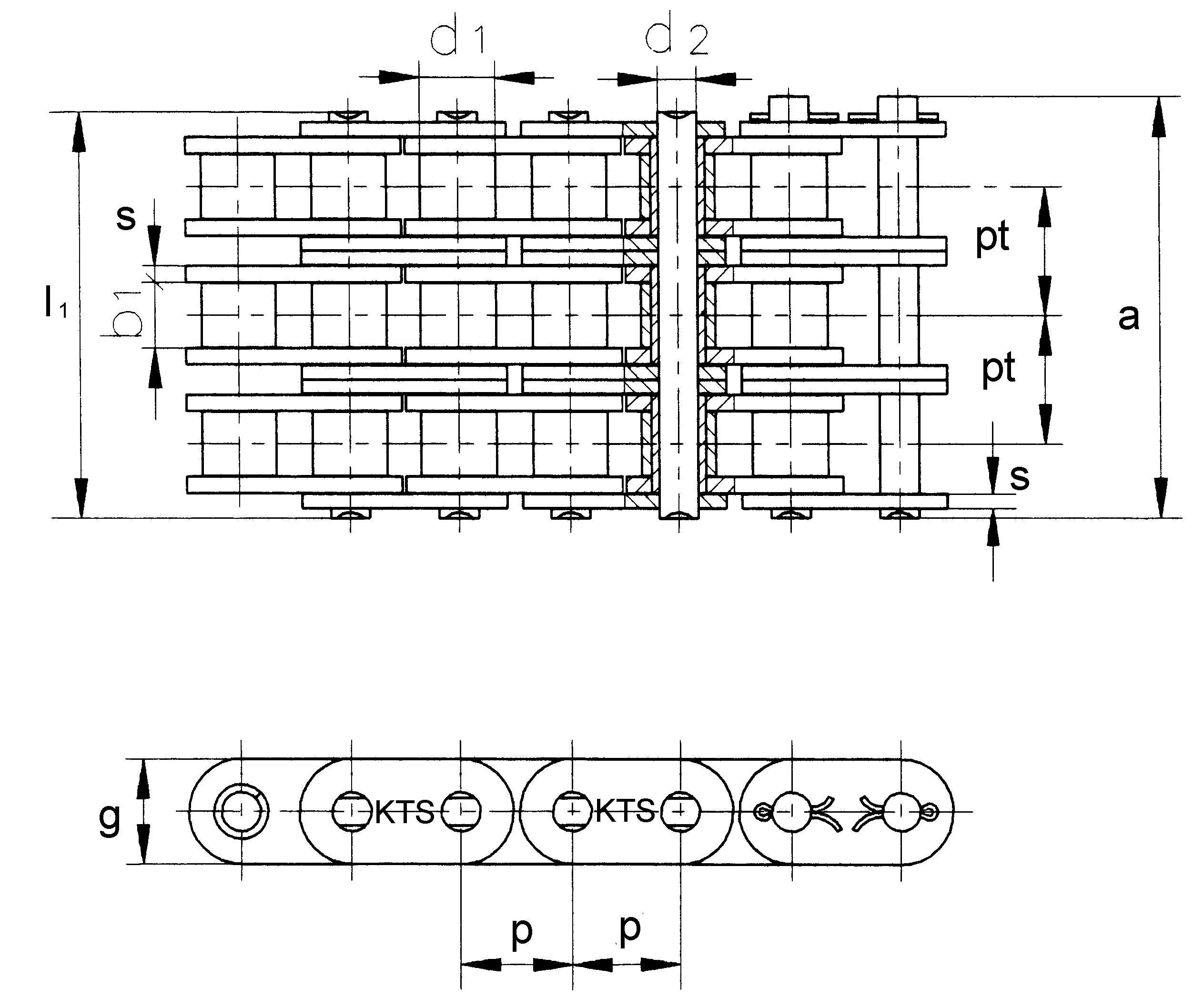

roller chains with straight plates similar to DIN 8187
|
|
inner width |
roller- |
pin- |
plate |
plate- |
pin- |
|
Quer- |
breaking-load |
breaking-load |
|
|
pitch |
inner link |
dia. |
dia. |
height |
thickness |
length |
|
breaking |
standard |
Ø reach |
weight |
| Chain |
p |
b1 |
d1 |
d2 |
g |
s1/s2 |
l1 |
a |
pt |
FB |
|
q |
| No. |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kN |
kN |
kg/m |
|
|
min. |
max. |
max. |
max. |
max. |
max. |
max. |
|
min. |
|
ca. |
| K08B-1GL |
12,700 |
7,75 |
8,51 |
4,45 |
11,8 |
1,6 |
16,7 |
18,2 |
|
18,00 |
19,50 |
0,80 |
| K10B-1GL |
15,875 |
9,65 |
10,16 |
5,08 |
14,7 |
1,7 |
19,5 |
20,9 |
|
22,40 |
27,90 |
1,06 |
| K12B-1GL |
19,050 |
11,68 |
12,07 |
5,72 |
16,0 |
1,9 |
22,5 |
25,2 |
|
29,00 |
32,20 |
1,32 |
| K16B-1GL |
25,400 |
17,02 |
15,88 |
8,28 |
21,0/24,0 |
4,15/3,1 |
36,1 |
39,1 |
|
60,00 |
72,80 |
3,08/3,49 |
| K20B-1GL |
31,750 |
19,56 |
19,05 |
10,19 |
26,4 |
4,5/3,5 |
41,3 |
45,0 |
|
95,00 |
106,70 |
4,16 |
| K24B-1GL |
38,100 |
25,40 |
25,40 |
14,63 |
33,2 |
6,0/4,8 |
53,4 |
57,8 |
|
160,00 |
178,00 |
7,47 |
| K28B-1GL |
44,450 |
30,99 |
27,94 |
15,90 |
36,7 |
7,5/6,0 |
65,1 |
69,5 |
|
200,00 |
222,00 |
9,90 |
| K32B-1GL |
50,800 |
30,99 |
29,21 |
17,81 |
42,0 |
7,0/6,0 |
66,0 |
71,0 |
|
250,00 |
277,50 |
10,45 |
| K08B-2GL |
12,700 |
7,75 |
8,51 |
4,45 |
11,8 |
1,6 |
31,2 |
32,2 |
13,92 |
32,00 |
38,70 |
1,45 |
| K10B-2GL |
15,875 |
9,65 |
10,16 |
5,08 |
14,7 |
1,7 |
36,1 |
37,5 |
16,59 |
44,50 |
57,80 |
2,00 |
| K12B-2GL |
19,050 |
11,68 |
12,07 |
5,72 |
16,0 |
1,9 |
42,0 |
44,7 |
19,46 |
57,80 |
66,10 |
2,62 |
| K16B-2GL |
25,400 |
17,02 |
15,88 |
8,28 |
21,0/24,0 |
4,15/3,1 |
68,0 |
71,0 |
31,88 |
106,00 |
133,00 |
6,10/6,92 |
| K20B-2GL |
31,750 |
19,56 |
19,05 |
10,19 |
26,4 |
4,5/3,5 |
77,8 |
81,5 |
36,45 |
170,00 |
211,20 |
8,23 |
| K24B-2GL |
38,100 |
25,40 |
25,40 |
14,63 |
33,2 |
6,0/4,8 |
101,7 |
106,2 |
48,36 |
280,00 |
319,20 |
14,77 |
| K28B-2GL |
44,450 |
30,99 |
27,94 |
15,90 |
36,7 |
7,5/6,0 |
124,6 |
129,1 |
59,56 |
360,00 |
406,80 |
19,82 |
| K32B-2GL |
50,800 |
30,99 |
29,21 |
17,81 |
42,0 |
7,0/6,0 |
124,6 |
129,6 |
58,55 |
450,00 |
508,50 |
20,94 |
| K08B-3GL |
12,700 |
7,75 |
8,51 |
4,45 |
11,8 |
1,6 |
45,1 |
46,1 |
13,92 |
47,50 |
57,80 |
2,10 |
| K10B-3GL |
15,875 |
9,65 |
10,16 |
5,08 |
14,7 |
1,7 |
52,7 |
54,1 |
16,59 |
66,70 |
84,50 |
2,87 |
| K12B-3GL |
19,050 |
11,68 |
12,07 |
5,72 |
16,0 |
1,9 |
61,5 |
64,2 |
19,46 |
86,70 |
101,80 |
3,89 |
| K16B-3GL |
25,400 |
17,02 |
15,88 |
8,28 |
21,0/24,0 |
4,15/3,1 |
99,8 |
102,9 |
31,88 |
160,00 |
203,70 |
9,12/10,34 |
| K20B-3GL |
31,750 |
19,56 |
19,05 |
10,19 |
26,4 |
4,5/3,5 |
114,2 |
117,9 |
36,45 |
250,00 |
290,00 |
11,34 |
| K24B-3GL |
38,100 |
25,40 |
25,40 |
14,63 |
33,2 |
6,0/4,8 |
150,1 |
154,6 |
48,36 |
425,00 |
493,00 |
22,10 |
| K28B-3GL |
44,450 |
30,99 |
27,94 |
15,90 |
36,7 |
7,5/6,0 |
184,2 |
188,7 |
59,56 |
530,00 |
609,50 |
29,64 |
| K32B-3GL |
50,800 |
30,99 |
29,21 |
17,81 |
42,0 |
7,0/6,0 |
183,2 |
188,2 |
58,55 |
670,00 |
770,50 |
31,27 |
