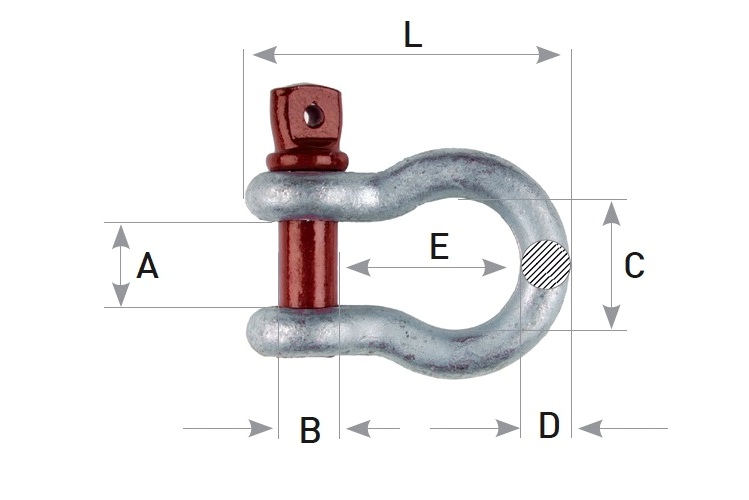

Screw pin bow schackles
| size in mm |
A +/- 1,2mm |
C +/- 1,2mm |
D +/- 0,5mm |
L +/- 2,0mm |
E +/-2,0mm |
B +/- 1,0mm |
breaking loadin to |
load capacity in to |
weight approx in kg |
| 6 |
12,0 |
19,8 |
6,5 |
46,8 |
28,0 |
7,5 |
3,00 |
0,50 |
0,05 |
| 8 |
13,5 |
21,4 |
8,0 |
53,0 |
29,5 |
9,5 |
4,50 |
0,75 |
0,09 |
| 10 |
16,8 |
26,2 |
9,7 |
63,2 |
35,0 |
11,5 |
6,00 |
1,00 |
0,14 |
| 11 |
19,1 |
29,5 |
11,2 |
78,0 |
52,0 |
13,4 |
9,00 |
1,50 |
0,17 |
| 12 |
20,6 |
33,3 |
12,7 |
83,3 |
46,5 |
15,5 |
12,00 |
2,00 |
0,33 |
| 16 |
27,0 |
42,9 |
16,0 |
106,5 |
58,5 |
19,5 |
19,50 |
3,25 |
0,62 |
| 20 |
32,0 |
50,8 |
20,6 |
126,5 |
71,0 |
21,5 |
28,50 |
4,75 |
1,07 |
| 22 |
36,6 |
58,0 |
24,6 |
148,0 |
83,0 |
24,0 |
39,00 |
6,50 |
1,64 |
| 25 |
43,0 |
68,4 |
27,0 |
167,0 |
95,0 |
27,0 |
51,00 |
8,50 |
2,28 |
| 28 |
46,0 |
74,0 |
31,8 |
190,0 |
107,0 |
30,0 |
57,00 |
9,50 |
3,36 |
| 32 |
51,6 |
82,6 |
35,0 |
209,6 |
117,0 |
36,0 |
72,00 |
12,00 |
4,31 |
| 35 |
57,2 |
92,2 |
38,1 |
232,7 |
134,0 |
39,0 |
81,00 |
13,50 |
6,14 |
| 38 |
60,5 |
98,6 |
41,2 |
254,0 |
145,0 |
39,0 |
102,00 |
17,00 |
7,80 |
| 45 |
73,2 |
127,0 |
57,2 |
313,5 |
177,0 |
48,0 |
150,00 |
25,00 |
12,60 |
| 50 |
82,6 |
146,0 |
61,0 |
347,5 |
195,0 |
67,5 |
210,00 |
35,00 |
20,41 |
